ZQCS Transmission seal

Transmission seal
Oil Transportation Seal
Oil tray
Product description: ZQCS Transmission seal
INQUIRY

Technical parameters:
    140 Axis Diameter
    Work pressure: 5MPa
    Oil flow rate: 489L/min
    Axis speed: 1200 rpm
    Axis Diameter: _140 mm
    Reciprocating speed of centrifuge: 30-40 times/min
    Medium: 32 # Mechanical Oil

    80 Axis Diameter
    Work pressure: 3.5-4.5 MPa
    Oil flow rate: 232L/min
    Axis speed: 1470 rpm
    Axis Diameter: 80mm
    Reciprocating speed of centrifuge: 30-70 times per minute, pushing distance 50 mm
    Medium: 32 # Mechanical Oil

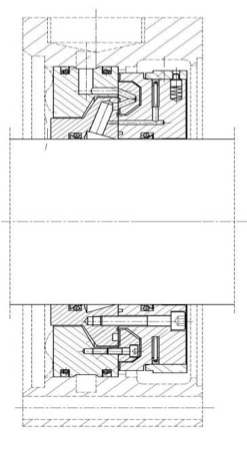

Schematic diagram:
